Table-Floor Shield
Replacement Panels
(Mavig)

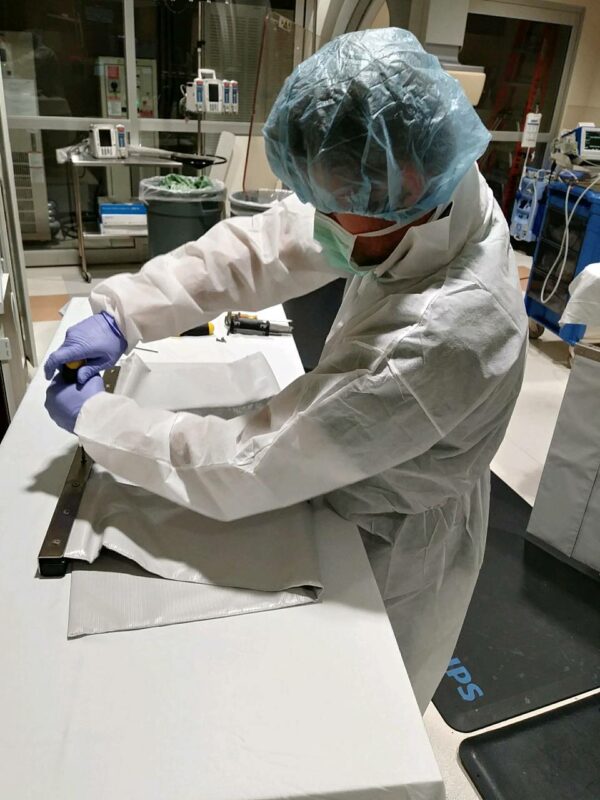

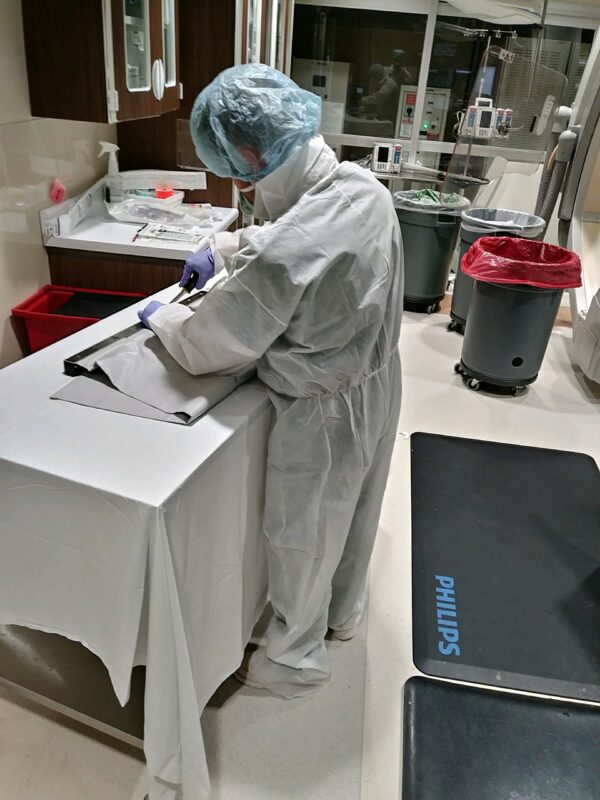

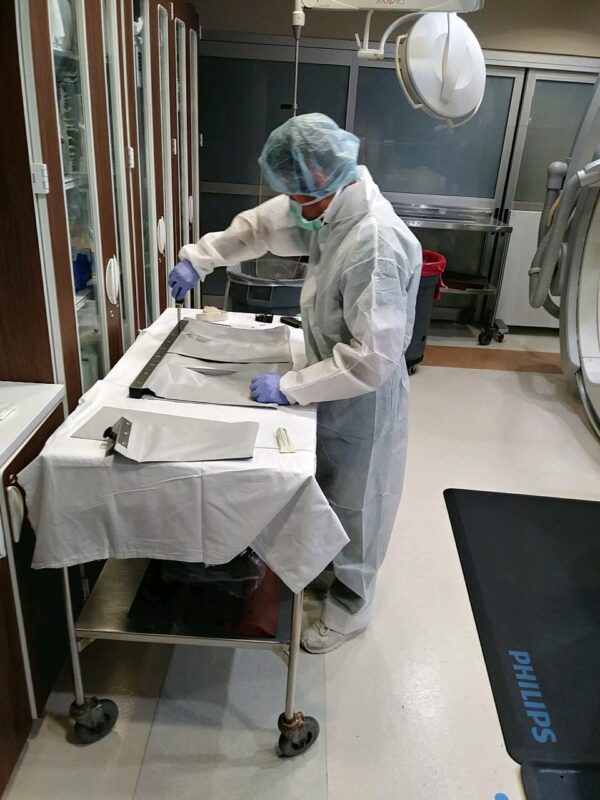

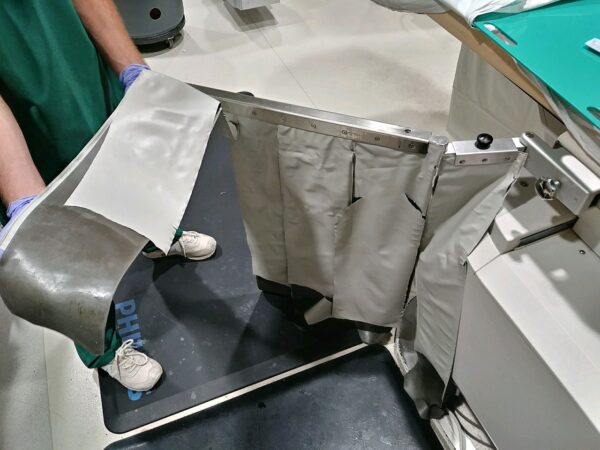

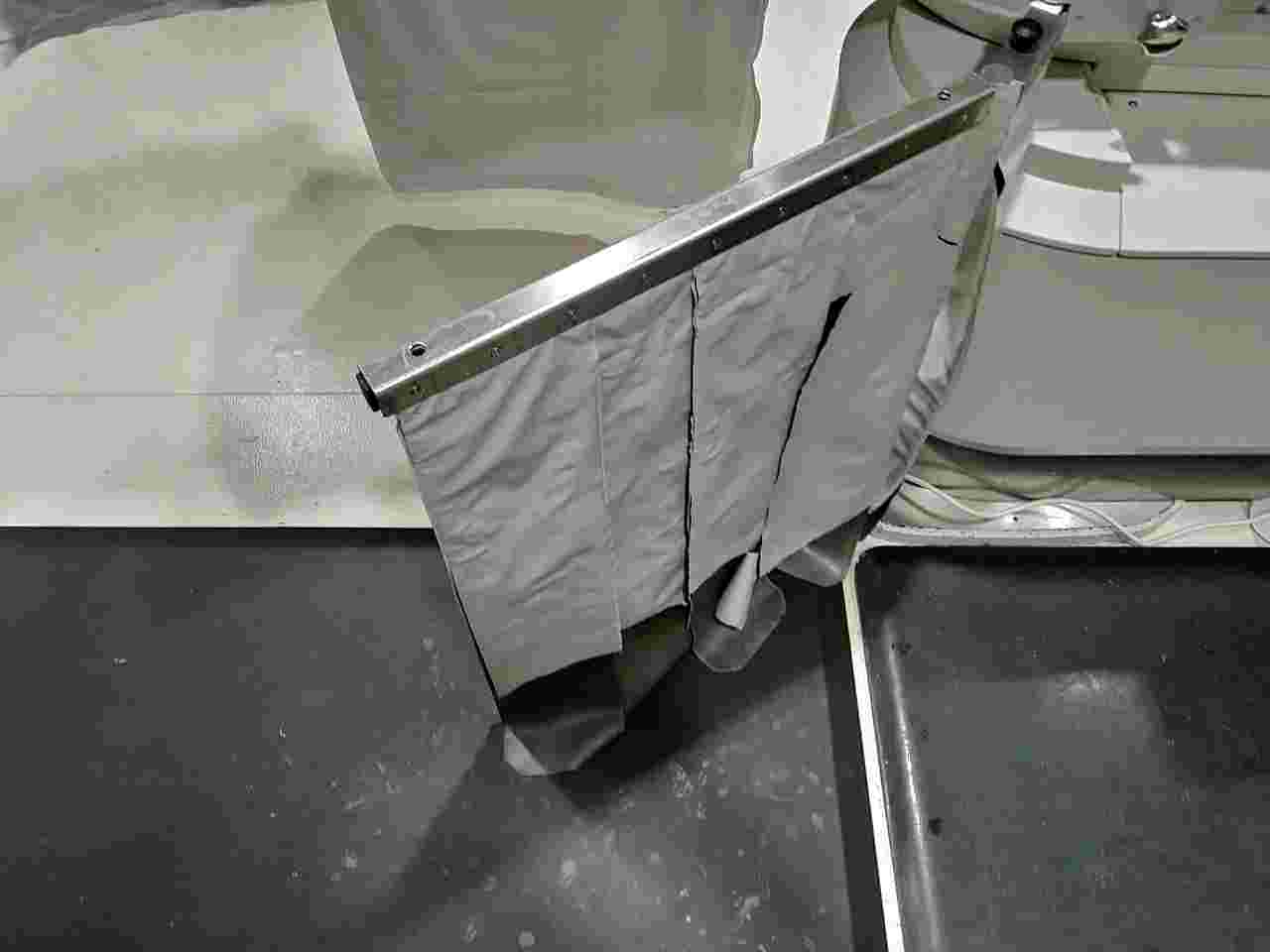

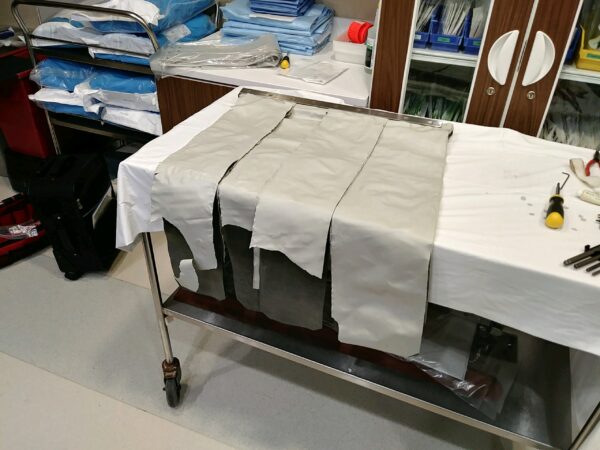

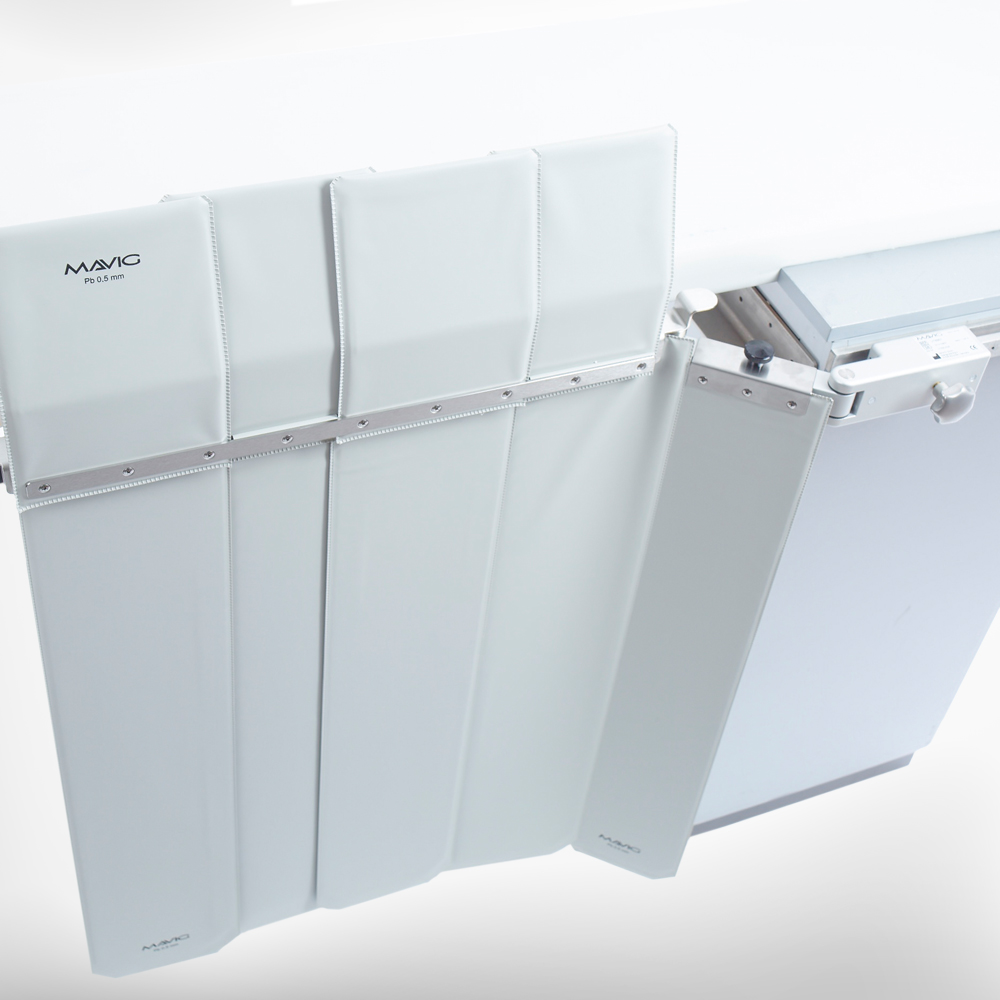

Do you have a Mavig Floor to Table Shield and the shields are coming apart from use? Do you just need the lead panels replaced but don’t need the whole hardware replaced? Mavig may not provide that option but we do!

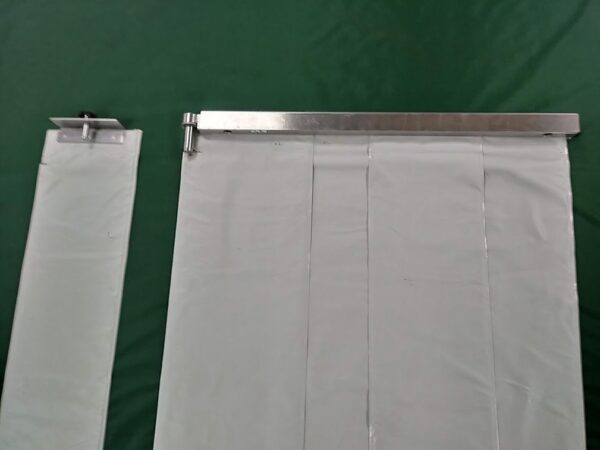

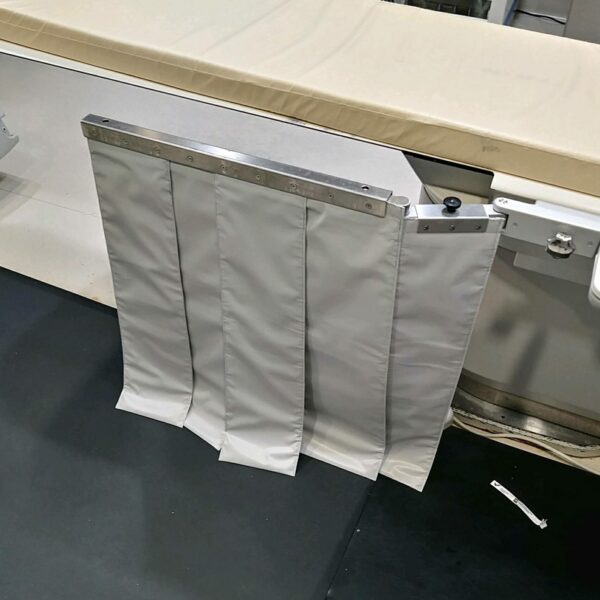

  • Replacement Lead Panels for the Mavig Table to Floor Shield
  • Easy to clean and mildew resistant.
  • Sewn seams, not heat sealed.
  • Easy cleaning, Fluid resistant fabric.
  • Comes in original 34” length or 31” length.
  • Color: Coal
  • .5mm Pb Equivalency
  • Made in USA

Request A Quote

Step 1 of 3

Description

  • Replacement Lead Panels for the Mavig Table to Floor Shield
  • Easy to clean and mildew resistant.
  • Sewn seams, not heat sealed.
  • Easy cleaning, Fluid resistant fabric.
  • Comes in original 34” length or 31” length.
  • Color: Coal
  • .5mm Pb Equivalency
  • Made in USA

Additional information

Length

31", 34"

Type

4 Panel Curtain Replacement, 1 Panel Curtain Replacement, 1 Panel out of the 4 Panel Curtain Replacement, Single Pivot Panel Replacement

Characteristics

  • Type: Table – Floor Replacement Parts
  • Style #: 463
  • Front Lead Thickness: 0.5mm Pb Equivalency
  • Lead Material: Economy Lead
  • Closure Type: NA

Lead

Economy Lead – heavy and rigid x-radiation protection material using a mixture of attenuating elements, Lead and Plastisol in a mixture optimized for maximum attenuation in the key diagnostic imaging range of 70 – 100 kV. The Economy Lead is not disposable or recyclable. Used for certain wearable aprons & accessories and all Table Drapes.

Maintenance

Table Drapes Care Instructions

Table Drapes should be routinely inspected for tears, punctures, or rips.

  • It is the user’s responsibility to radiograph this product upon receipt and regularly thereafter to ensure that no damage has occurred to lessen the protective qualities.
  • AVOID SUN OR HEAT EXPOSURE.
  • Do not fold, crease, store on a shelf or pile up your Table Drapes. This may cause damage and decrease the life of the device.
  • Store your apron either on a suitable hanger.
  • STORE AT ROOM TEMPERATURE.
    • Approx. 70-80°F (21-27°C)
    • Limit Approx. 60-100°F (16-38°C)
  • Do not store in a hot car.


Table Drapes Cleaning and Disinfection Instructions

ROUTINELY CLEAN YOUR TABLE DRAPES.

  • Table Drapes should be surfaced cleaned only.
  • Do not allow stains to set and dry. The fabric covering is coated to prevent staining, but the stain must be cleaned before it has time to set.
  • Quaternary ammonium cleaners/disinfectants (QATS) are recommended, provided they are alcohol-free and made up in dilute water-based forms.
  • Approved QAT or active oxygen proprietary disinfectants/ cleaners: “Fiberlock IAQ 2000” Fiberlock Technologies; “Lysol IC Quaternary Disinfectant” Reckitt Benckiser.
  • Wipe the fabric with a dampened cloth or disposable wipe with cold soapy water.
  • Sanitizing wipes may be used.
  • In all cases, the fabric surface should be wiped with a dampened cloth
  • Hang to air dry.
  • Do not immerse drape in any liquid. Do not use bleach. Do not use alcohol or alcohol- based agents. Do not machine dry or iron.
  • Do not autoclave or use gamma irradiation for sterilizing.
  • Contact us for more information on specific cleaning problems.

Disposal

Users must dispose of Lead Garments and accessories by complying with local, state, and federal regulations.

  • USAXRAY will dispose of customer’s used USAXRAY brand lead vinyl products.
  • USAXRAY, at our discretion, may dispose of a customer’s used competitor’s lead vinyl product for a fee.
  • An RA# must be produced by USAXRAY prior to shipping.
  • A Certificate of Conformance/ Disposal of lead Vinyl is sent to the customer once the disposal has been made.
  • Please call for more information & pricing
